T4 Transfer Pump
T4 Transfer Pump 2
Graco 26D001

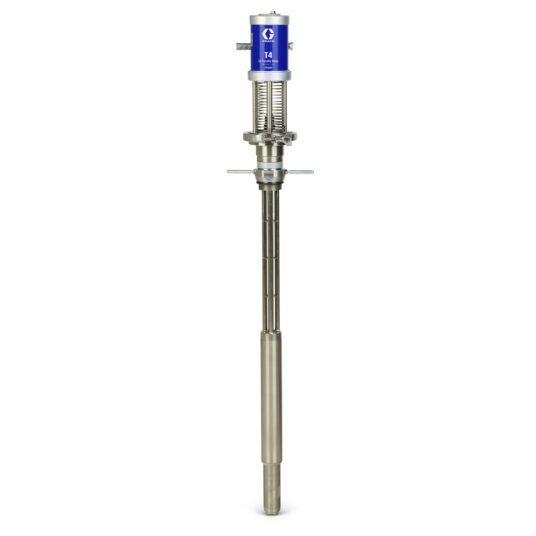

T4 Carbon Steel Transfer Pump with ProConnect

3:1 ratio piston pump for higher viscosity materials.

Part #: 26D001
$2,090.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T4 Transfer Pump combines Graco’s proven Merkur air-motor and carbon steel lower. The T4 is a 3:1 ratio pump with ProConnect technology – allowing you to quickly connect and disconnect the air motor from the pump lower.


  • Quick Transfer Between Drums – quickly change to a new drum of material without the mess of dripping chemical by using multiple pump lowers
  • Easier to Maneuver – easily transfer the T4 pump between drums by quickly disconnecting the air motor from the lower before transferring. This makes the pump lighter weight and reduces the necessary ceiling height of your rig
  • Eliminate Downtime – get up and running quickly when your pump lower requires maintenance by having a spare pump lower that can easily be installed
T4 Transfer Pump 2

Specifications & Documents

Technical Specifications
Fluid Output
4.5 gpm
Max Working Pressure (psi)
315 psi
Max Operating Temp
190°F
