Smart Pro XP Auto Waterborne AA Gun Models

For Model HA1M18

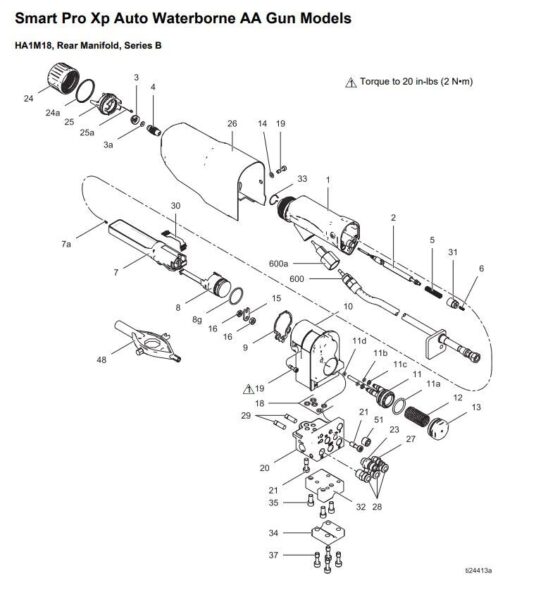

HA1 M18 exploded view

(Tap to zoom) (mouse over to zoom)

Repair Kits

WB AA Hose Mount Kit

Includes items 32, 34, 35 and 37.

Kit, Repair, Air Seal, XP Auto

Includes items 8g, 9, 18 and 24a.

KIT, REPAIR, AIR SEAL, XP AUTO Part #: 24W390
Price: $232.50

Alternator Assembly, Pro XP

Includes item 9.

Alternator Assembly, Pro Xp Part #: 24N664
Price: $988.00

Individual Components

Item 1 - Kit, Barrel, AA, XP, Auto

Includes item 9.

Kit, Barrel, AA. XP, Auto Part #: 24W874
Price: $1,400.00

Item 2 - Needle Assembly, 85kV, Air-Assisted Airless

Includes item 5.

Needle Assembly, 85kV, Air-Assisted Airless Part #: 24N781
Price: $386.00

Item 3 - AEM Tip Assembly

Item 3a - Tip Gasket

WASHER Part #: 183459
Price: $6.85

Item 4 - Seat Housing

Housing Seat for Standard Pro Xp Auto AA Gun Models Part #: 24N725
Price: $85.75

Item 5 - Fluid Needle Spring

Fluid Needle Spring Part #: 24N782
Price: $15.90

Item 6 - Compression Spring

Compression Spring Part #: 197624
Price: $28.70

Item 7 - Kit, Power Supply, 60KV, WB

KIT, POWER SUPPLY, 60KV,WB Part #: 24N662
Price: $3,570.00

Item 7a - Spring

Spring Part #: 24N979
Price: $8.90

Item 8 - Retaining Ring

Ring for Standad Pro Xp Auto Waterborne AA Gun Models Rear Manifold Part #: 24N644
Price: $25.60

Item 8g - O-Ring

O-Ring Part #: 110073
Price: $21.40

Item 9 - Barrel Gasket

Barrel Gasket Part #: 25N921
Price: $31.40

Item 10 - Kit, Body, XP, AA SMT Rear WB

Kit, Body, XP, AA SMT Rear WB Part #: 24W867
Price: $2,110.00

Item 11 - Kit, Piston, Actuation

KIT, PISTON, ACTUATION Part #: 24W396
Price: $373.00

Item 11a - Packing, O-Ring

Packing, O-Ring Part #: 17B704
Price: $37.20

Item 11b - O-Ring

O-Ring Part #: 111504
Price: $42.90

Item 11c - O-Ring

O-Ring Part #: 112319
Price: $30.40

Item 11d - Packing, O-ring

Packing, O-Ring Part #: 111508
Price: $127.00

Item 12 - Spring, Compression

Spring, Compression Part #: 112640
Price: $12.80

Item 13 - Kit, Cap, Piston Actuation

KIT, CAP, PISTON ACTUATION Part #: 24W397
Price: $74.00

Item 14 - Washer, plain #10 SST

Washer, Plain #10 SST Part #: 513505
Price: $6.85

Item 15 - Kit, Arm, Fluid Actuator

KIT, ARM, FLUID ACTUATOR Part #: 24W398
Price: $65.50

Item 16 - Full Hex Nut

Full Hex Nut Part #: 100166
Price: $7.30

Item 18 -O-Ring Packing

O-Ring Packing Part #: 111450
Price: $40.60

Item 19 - Captive Screw, Pack of 2

Captive Screw, Pack of 2 Part #: 24N740
Price: $30.90

Item 20 - Kit, Manifold, Rear, XP Auto

KIT, MANIFOLD, REAR, XP AUTO Part #: 24W392
Price: $1,255.00

Item 21 - Kit, Screw, Modified, 1/4-20

KIT, SCREW, MODIFIED, 1/4-20 Part #: 24W399
Price: $31.80

Item 23 - Kit, Fitting, Adapter, LH, Air

Kit, Fitting, Adapter, LH, Air Part #: 24W411
Price: $74.75

Item 24 - Retainer Ring

Retainer Ring Part #: 24N793
Price: $25.50

Item 24a - U-Cup Packing, UHMWPE

U-Cup Packing, UHMWPE Part #: 198307
Price: $15.80

Item 25 - Air Cap Assembly, Pro XP, Air-Assisted Airless

Air Cap Assembly, Pro Xp, Air-Assisted Airless Part #: 24N727
Price: $214.00

Item 25a - Electrode, Air-Assisted Airless, Pack of 5

Electrode, Air-Assisted Airless, Pack of 5 Part #: 24N643
Price: $61.25

Item 26 - Kit Shroud, Auto XP

KIT, SHROUD, AUTO XP Part #: 24W388
Price: $232.50

Item 27 - Fitting, Connector, Male, 1/8" NPT x 5/32" OD

Fitting, Connector, Male, 1/8" NPT x 5/32'' OD Part #: 114263
Price: $18.20

Item 28 - Tube Fitting

Tube Fitting Part #: 115950
Price: $19.60

Item 29 - Screw Set

Screw, Set Part #: 110465
Price: $31.40

Item 30 - Flexible Circuit

Flexible Circuit Part #: 245265
Price: $222.00

Item 31 - Spring Cap

Spring Cap Part #: 24N785
Price: $43.80

Item 32 - In Kit 24W879

Not sold separately

Item 33 - Conductive Ring, Pro Xp AA

Conductive Ring, Pro Xp AA Part #: 24N747
Price: $26.20

Item 34 - In kit 24W879

Not sold separately

Item 35 - 1/4-20 x 1/2 in Stainless Steel Screw

1/4-20 x 1/2 in Stainless Steel Screw Part #: GC2248
Price: $3.95

Item 36 - Dielectric Grease Tube, 1 oz

Dielectric Grease Tube, 1 oz Part #: 116553
Price: $40.60

Item 37 - Kit, Screws, Plastic

Kit, Screws, Plastic Part #: 24X482
Price: $112.00

Item 44 - Multi-Tool, Pro Xp

(not shown)

Multi-Tool, Pro Xp Part #: 276741
Price: $112.00

Item 45 - Wrench Tool with Ball End, 4mm, Pro Xp

(not shown)

Wrench Tool with Ball End, 4 mm, Pro Xp Part #: 107460
Price: $41.00

Item 48 - Needle Tool

(not shown)

Needle Tool Part #: 112080
Price: $33.00

Item 51 - Screw, Set

Screw, Set Part #: 117560
Price: $5.25

Item 80 - Kit, DCM, XP Auto

(not shown)

Pro Xp Auto Control Module with software, mounting bracket and power supply Part #: 24W035
Price: $2,370.00

Item 600 - Waterborne Fluid Hose, 25ft

Waterborne Fluid Hose, 25ft Part #: 24W599
Price: $2,400.00

Item 600a - Waterborne Fluid Hose 25ft

Waterborne Fluid Hose, 25ft Part #: 24W599
Price: $2,400.00
