Pro XP Auto Air Spray Gun

For models LA1M10, LA2M10, LA1M16 and LA2M16.

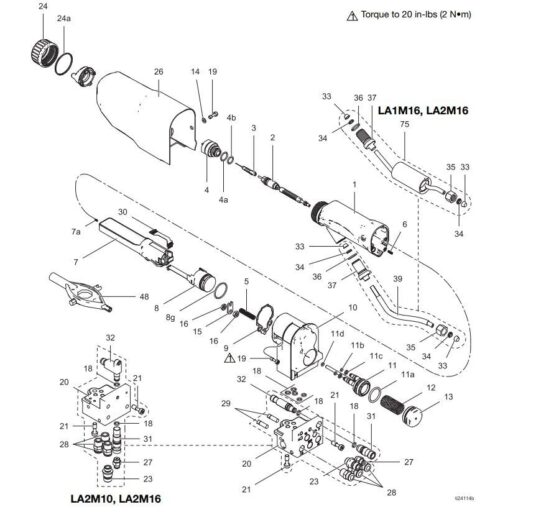

Smart Pro XP Auto Air Spray Gun exploded view

(Tap to zoom) (mouse over to zoom)

Repair Kits

Air Seal Repair Kit

Includes 8g, 9, 18 and 24a.

Fluid Seal Repair Kit

Includes 18, 33 and 34.

Turbine Assembly

Includes 9.

Alternator Assembly, Pro Xp Part #: 24N664
Price: $959.00

High Conductivity Fluid Tube Assembly

Includes 33 - 37 and 75.

Kit, HC Fluid Tube Auto XP Part #: 25N922
Price: $996.00

Individual Components

Item 1 - Kit, Barrel, XP Auto

Includes 9

Body, Gun Assembly Part #: 24W873
Price: $1,515.00

Item 2 - Packing Rod Assembly, 85kv

Packing Rod Assembly, 85 kV Part #: 24N655
Price: $375.00

Item 3 - Electrode

Electrode, Standard, Gray Part #: 24N651
Price: $66.75
Electrode, High Wear, Blue Part #: 24N704
Price: $82.75

Item 4 -Fluid Nozzle

Includes 4a and 4b.

Fluid Nozzle, 1.5 mm (0.055") Part #: 24N616
Price: $133.50
Fluid Nozzle, 1.5 mm (0.055"), Precision High Wear Part #: 25N833
Price: $183.50

Item 4a - Conductive O-Ring

Conductive O-Ring Part #: 24N645
Price: $8.65

Item 4b - Fluoroelastomer O-Ring

Fluoroelastomer O-Ring Part #: 111507
Price: $90.50

Item 5 - Compression Spring

Compression Spring Part #: 185111
Price: $21.90

Item 6 - Compression Spring

Compression Spring Part #: 197624
Price: $27.10

Item 7 - Power Supply, 85kv

Power Supply, 85kV Part #: 24N661
Price: $4,610.00

Item 7a - Spring

Spring Part #: 24N979
Price: $8.65

Item 8 - Alternator Assembly

Alternator Assembly, Pro Xp Part #: 24N664
Price: $959.00

Item 8g - O-Ring

O-Ring Part #: 110073
Price: $20.20

Item 9 - Barrel Gasket

Barrel Gasket Part #: 25N921
Price: $30.50

Item 10 - Body, Assy Kit

Includes 18 and 19.

Body, Assy Kit, Auto XP Smart, Rear Part #: 24W383
Price: $2,070.00
Body, Assy, Auto XP Smart, Bottom Part #: 24W868
Price: $2,050.00

Item 11 - Kit, Piston, Actuation

KIT, PISTON, ACTUATION Part #: 24W396
Price: $362.00

Item 11a - Packing O-Ring

Packing, O-Ring Part #: 17B704
Price: $36.10

Item 11b - O-Ring

O-Ring Part #: 111504
Price: $40.50

Item 11c - O-Ring

O-Ring Part #: 112319
Price: $28.70

Item 11d - Packing, O-Ring

Packing, O-Ring Part #: 111508
Price: $120.00

Item 12 - Spring, Compression

Spring, Compression Part #: 112640
Price: $12.10

Item 13 - Cap, Piston, Actuation

Item 14 - Washer, Plain #10 SST

Washer, Plain #10 SST Part #: 513505
Price: $6.45

Item 15 - Kit, Arm, Fluid Actuator

KIT, ARM, FLUID ACTUATOR Part #: 24W398
Price: $63.50

Item 16 - Full Hex Nut

Full Hex Nut Part #: 100166
Price: $7.10

Item 18 - O-Ring Packing

O-Ring Packing Part #: 111450
Price: $38.30

Item 19 - Captive Screw, Pack of 2.

Captive Screw, Pack of 2 Part #: 24N740
Price: $30.00

Item 20 -Manifold Kit

Includes 18, 21 , 23 , 27, 28 , 29, and 31.

KIT, MANIFOLD, REAR, XP AUTO Part #: 24W392
Price: $1,220.00
KIT, MANIFOLD, BOTTOM, XP AUTO Part #: 24W393
Price: $1,210.00

Item 21 - Screw, Modified

Pack of 2

KIT, SCREW, MODIFIED, 1/4-20 Part #: 24W399
Price: $30.90

Item 23 -Kit, Fitting, Adapter

Kit, Fitting, Adapter, LH, Air Part #: 24W411
Price: $72.50

Item 24 -Retaining Ring

Includes 24a

Ring for Standad Pro Xp Auto Waterborne AA Gun Models Rear Manifold Part #: 24N644
Price: $24.90

Item 24a - U-Cup Packing

U-Cup Packing, UHMWPE Part #: 198307
Price: $14.90

Item 25 - Air Cap

Air Cap, Electrostatic, Black, Standard, Round End Part #: 24N477
Price: $133.50

Item 26 - Kit, Shroud Cover

KIT, SHROUD, AUTO XP Part #: 24W388
Price: $225.50

Item 27 - Fitting, Connector, Male

Fitting, Connector, Male, 1/8" NPT x 5/32'' OD Part #: 114263
Price: $17.70

Item 28 - Tube Fitting

Tube Fitting Part #: 115950
Price: $19.00

Item 29 - Screw, Set

LA1M10 and LA1M16 only.

Screw, Set Part #: 110465
Price: $29.60

Item 30 - Flexible Circuit

Flexible Circuit Part #: 245265
Price: $209.50

Item 31 - Manifold Kit

Includes 18, qty of 1.


Manifold Kit, Fitting, Rear Part #: 24X299
Price: $54.25
Manifold Kit, Fitting, Bottom Part #: 24X300
Price: $258.50

Item 32 - Fitting, Fluid

Fitting, Fluid, Rear (LA1M10 and LA1M16) Includes 18, qty of 1.

Fitting, Fluid, Bottom (LA2M10 and LA2M16) Includes 18, qty of 1 and 19, qty of 1.

Fitting, Fluid, Rear, A/S Part #: 24X297
Price: $81.50
Fitting, Fluid, Bottom Part #: 24X298
Price: $305.00

Item 33 - Ferrule Front

Ferrule, Front Part #: 111286
Price: $7.30

Item - 34 - Ferrule, Back

Ferrule, Back Part #: 111285
Price: $7.30

Item 35 -Nut

Nut Part #: 112644
Price: $8.95

Item 36 - O-Ring Packing

O-Ring Packing Part #: 102982
Price: $7.30

Item 37 - Fluid Fitting

Fluid Fitting, 85kv, Air Spray for models LA1M10 and LA2M10

Fluid Fitting, 85kv, HC Fluid Tube, Air Spray for models LA1M16 and LA2M16.

Fluid Fitting, 85kV, Air Spray Part #: 24N658
Price: $40.60
Fluid Fitting, 85kV, HC Fluid Tube, Air Spray Part #: 25N851
Price: $40.70

Item 39 - Kit, Fluid Tube

KIT, FLUID TUBE, XP, A/S Part #: 24W385
Price: $54.25

Item 43 - Grease, dielectric; 1 oz (Not shown)

Dielectric Grease Tube, 1 oz Part #: 116553
Price: $38.30

Item 48 - Multi-Tool

(shipped loose)

Multi-Tool, Pro Xp Part #: 276741
Price: $105.50

Item 75 - Kit, HC Fluid tube

Kit, HC Fluid Tube Auto XP Part #: 25N922
Price: $996.00

Item 80 - Kit, DCM, XP Auto

(Not shown)

Pro Xp Auto Control Module with software, mounting bracket and power supply Part #: 24W035
Price: $2,300.00
