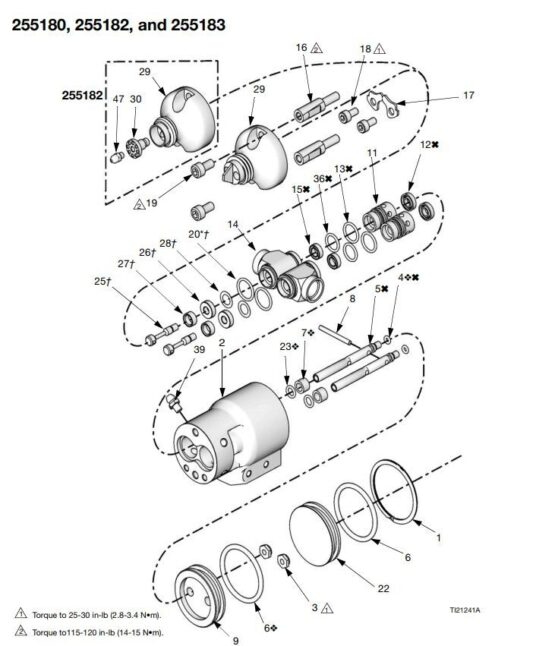

MD2 Dispense Valve

For Models: 255180, 255182 and 255183.

(Tap to zoom) (mouse over to zoom)

Repair Kits

MD2 Rebuild Kit, Air Cylinder

Include items 4, 6 and 7 and 23.

MD2 Rebuild Kit, Air Cylinder Part #: 255217

Price: $85.00

MD2 Rebuild Kit, Back-End of Wet Section

Includes items 4, 5, 12, 13, 15 and36.

MD2 Rebuild Kit, Back-End Of Wet Section Part #: 255218

Price: $372.00

MD2 Soft Seat Rebuild Kit, Needle and Nose

Includes item 20.

MD2 Soft Seat Rebuild Kit, Needle and Nose Part #: 255219

Price: $331.00

MD2 Hard Seat Rebuild Kit, Needle and Nose

Includes items 20 and 25-28.

MD2 Hard Seat Rebuild Kit, Needle and Nose Part #: 255220

Price: $599.00

Individual Components

Item 1 - Retainer Ring

Retainer Ring Part #: 120762

Price: $15.70

Item 2 - Air Cylinder Housing Kit

Air Cylinder Housing Kit Part #: 24X840

Price: $292.00

Item 3 - Lock Nut

Lock Nut Part #: 102920

Price: $4.80

Item 4 - O-Ring Packing

O-Ring Packing Part #: 157628

Price: $7.75

Item 5 - Primary Shaft

Primary Shaft Part #: 15K421

Price: $78.00

Item 6 - O-Ring Packing

O-Ring Packing Part #: 156593

Price: $15.50

Item 7 - Sleeve Bearing

Sleeve Bearing 1/4, 3/8, 1/4, Nylon Part #: 551181

Price: $22.60

Item 8 - Pin, Dowel 1/8 X 1.25 18-8 SST

Pin, Dowel 1/8 X 1.25 18-8 SST Part #: 551183

Price: $24.50

Item 9 - Piston, Air Cylinder

Piston, Air Cylinder, 2K2 Part #: 626067

Price: $453.00

Item 11 - Bearing, Seal

Bearing, Seal Part #: 15K422

Price: $64.75

Item 12 - U-Cup Packing, Nitrile

U-Cup Packing, Nitrile Part #: 551191

Price: $26.70

Item 13 - O-Ring

Item 14 - Housing, Inlet

Housing, Inlet Part #: 15K441

Price: $99.75

Item 15 - UHMWPE Seal

UHMWPE Seal Part #: 120768

Price: $50.75

Item 16 - Valve Spacer

Valve Spacer Part #: 15K442

Price: $15.70

Item 17 - Inlet Adapter Clamp

Inlet Adapter Clamp Part #: 15K444

Price: $7.90

Item 18 - Screw, Socket Head Cap, M5 x 0.8 x 8 mm

Screw,Socket Head Cap, M5 x 0.8 x 8 mm Part #: 121224

Price: $6.15

Item 19 - Socket Head Cap Screw, High Strength

Socket Head Cap Screw, High Strength Part #: 107530

Price: $5.00

Item 20 - O-Ring

O-Ring Part #: 117517

Price: $11.10

Item 22 - Air Cylinder Cap

Air Cylinder Cap Part #: 15K447

Price: $31.30

Item 23 - O-Ring, 010 Buna-n

O-Ring, 010 Buna-n Part #: 156454

Price: $9.25

Item 25 - Needle, Hardened SST

Needle, Hardened SST Part #: 626062

Price: $152.00

Item 26 - Seat, C2 Carbide

Seat, C2 Carbide Part #: 185467

Price: $73.25

Item 27 - Insert, Suff-Back, 2K2

Insert, Suff-Back, 2K2 Part #: 626060

Price: $39.90

Item 28 - Seat Gasket

Seat Gasket For Stainless Steel, Waterbase Compatible Fluid Pressure Regulators Part #: 171860

Price: $13.80

Item 29 - Nose Housing

Nose Housing, 1:1 Part #: 15K445

Price: $907.00

Nose Housing, 1:1 Part #: 16T648

Price: $1,335.00

Nose Housing, 10:1 Part #: 15K649

Price: $571.00

Item 30 - Tube Injector

Tube, Injector Part #: 15V624

Price: $158.50

Item 31 - Nightcap

(Not shown)

Nightcap 1:1 Part #: 15K652

Price: $46.60

Nightcap 10:1 Part #: 15V628

Price: $30.60

Item 32 - Retaining Nut

Retaining Nut, 7/8"-9 Part #: 15K688

Price: $46.00

Item 33 - Headless Pipe Plug

Headless Pipe Plug Part #: 104765

Price: $18.50

Item 36 - Fluoroelastomer O-Ring

Fluoroelastomer O-Ring Part #: 118594

Price: $8.20

Item 39 - Grease Fitting

Grease Fitting Part #: 120892

Price: $2.75

Item 40 - Ratio Check Adapter

Ratio Check MD2 Adapter, 1:1 Part #: 255247

Price: $154.50

Kit, Ratio Check, 10:1 Part #: 24P850

Price: $160.00

Item 42 - Plug Cap
