AirPro Automatic Air Spray Gun, conventional

For model: 24A749

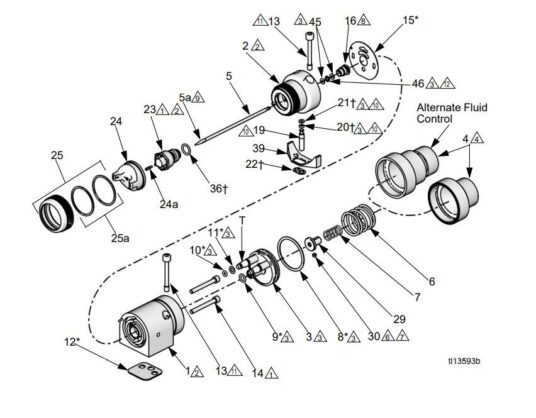

Air Pro Automatic Air Spray Gun Conventional

(Tap to zoom) (mouse over to zoom)

Repair Kits

Needle/Nozzle Kit (.055)

Includes items 5 and 23.

Needle/Nozzle Kit (.055) Part #: 24A689
Price: $139.50

Kit, Needle, Assy

Includes needle tip

Kit, Needle, Assy Part #: 24A685
Price: $58.25

Kit, Repair, Air Seal, Low PSI

Includes items 8, 9, 10, 11, 12 and 15.

Kit, Repair, Air Seal, Low PSI Part #: 288171
Price: $190.50

Repair Kit

Includes items 20, 21, 22, 36, 45 and 46.

Repair Kit Part #: 24B675
Price: $86.50

Individual Components

Item 1 - Not sold separately

Item 2 - Kit, Housing

Kit, Housing Part #: 24B676
Price: $291.00

Item 3 - Piston, Assy

Piston, Assy Part #: 240895
Price: $89.00

Item 4 - Piston Cap

Piston Cap Part #: 192453
Price: $69.50

Item 5 - Kit, Needle, Assy

Kit, Needle, Assy Part #: 24A685
Price: $58.25

Item 6- Spring Compression

Spring, Compression Part #: 114139
Price: $13.70

Item 7 - Spring Compression

Spring Compression Part #: 114138
Price: $11.60

Item 8 - Packing, O-Ring

Packing, O-Ring Part #: 115066
Price: $101.50

Item 9 - O-Ring Packing

O-Ring Packing Part #: 111450
Price: $40.60

Item 10 - O-Ring

O-Ring Part #: 111504
Price: $42.90

Item 11 - O-Ring

O-Ring Part #: 112319
Price: $30.40

Item 12 - Gasket, Polyethylene Body

Gasket, Polyethylene Body Part #: 114134
Price: $12.80

Item 13 - Manifold Mounting Screw

Manifold Mounting Screw Part #: 15H317
Price: $15.30

Item 14 - Screw, SHC

Screw, SHC Part #: 15H318
Price: $12.90

Item 15 - Gasket, Polyethylene Front

Gasket, Polyethylene Front Part #: 15H316
Price: $10.30

Item 16 - Nut, Packing

Nut, Packing Part #: 195222
Price: $19.80

Item 19 - Plug, Fluid

Plug, Fluid Part #: 192687
Price: $14.60

Item 20 -Ring, Back-up PTFE

Ring, Back-Up, PTFE Part #: 114340
Price: $15.30

Item 21 -Packing, O-Ring

Packing, O-Ring Part #: 114244
Price: $26.70

Item 22 - Gasket, Fluid

Gasket, Fluid Part #: 192443
Price: $62.25

Item 23 - Nozzle Kit, Orifice Size 0.055 (1.4)

Nozzle Kit, Orifice Size 0.055 (1.4) Part #: 289064
Price: $105.00

Item 24 - Air Cap Kit

Air Cap Kit Part #: 24B544
Price: $151.00

Item 24a - Kit, Pin

Air Cap Alignment Pins Part #: 24B546
Price: $116.50

Item 25 - Retaining Ring Kit

Retaining Ring Kit Part #: 289079
Price: $42.10

Item 25a - Air Cap Seal Kit, AirPro

Air Cap Seal Kit Part #: 289791
Price: $77.75

Item 29 - Stop, Needle

Stop, Needle Part #: 192452
Price: $20.90

Item 30 - Screw, Set

Screw, Set Part #: 114137
Price: $12.50

Item 36 - O-Ring Packing

O-Ring Packing Part #: 111457
Price: $16.50

Item 39 - Insert, Plastic

Insert. Plastic Part #: 15H702
Price: $12.90

Item 45 - Washer, UHMWPE

Not sold separately. In kit 24B675

Item 46 - Spacer

Not sold separately. In kit 24B675

Total Price

$0.00
