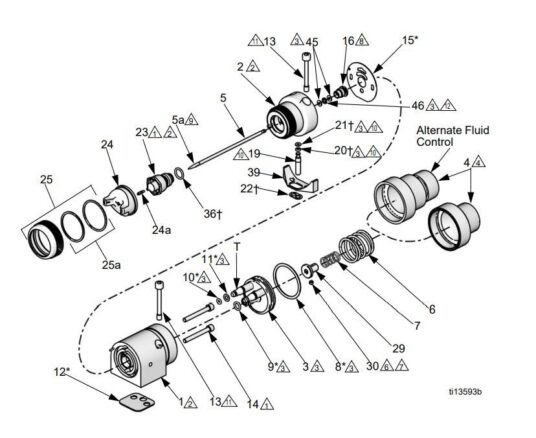

AirPro Automatic Air Spray Gun, Conventional

For Model: 24A747, 24A748 and 24B333

(Tap to zoom) (mouse over to zoom)

Repair Kits

Kit, Repair, Air Seal, Low PSI

Includes items 8, 9, 10, 11, 12 and 15.

Kit, Repair, Air Seal, Low PSI Part #: 288171

Price: $185.00

Repair Kit

Includes items 20, 21, 22, 36, 45 and 46.

Repair Kit Part #: 24B675

Price: $84.00

Individual Parts

Item 1 - Housing, Piston

Not sold separately.

Item 2 - Kit, Housing

Kit, Housing Part #: 24B676

Price: $282.50

Item 3 - Piston Assy

Piston, Assy Part #: 240895

Price: $86.50

Item 4 - Piston Cap

Piston Cap Part #: 192453

Price: $65.50

Item 5 - Needle/Nozzle Kits

Includes items 5 and 23

Needle/Nozzle Kit for AirPro Automatic Guns w/0.020 inch (0.5mm) Nozzle Part #: 24B332

Price: $146.50

Needle and Nozzle Kit, 0.030 Part #: 24a687

Price: $146.50

Needle/Nozzle Kit for AirPro Automatic Guns with 0.042 inch (1.1mm) Nozzle Part #: 24A688

Price: $135.50

Kit Needle And Nozzle 0.07 Part #: 24A690

Price: $146.50

Item 5a - Needle Tip Kit

Needle Tip Kit, Orifice 0.020 (0.5) Part #: 289350

Price: $53.75

Needle Tip Kit, Orifice Size 0.030 (0.8) Part #: 288183

Price: $63.25

Needle Tip Kit, Orifice Size 0.042 (1.1) Part #: 288184

Price: $63.25

Needle Tip Kit, Orifice Sizes 0.055 (1.4), 0.070 (1.8) Part #: 288185

Price: $58.50

Item 6 - Spring, Compression

Spring, Compression Part #: 114139

Price: $12.90

Item 7 - Spring Compression

Spring Compression Part #: 114138

Price: $10.90

Item 8 - Packing, O-Ring

Packing, O-Ring Part #: 115066

Price: $95.75

Item 9 - O-Ring Packing

O-Ring Packing Part #: 111450

Price: $38.30

Item 10 - O-Ring

O-Ring Part #: 111504

Price: $40.50

Item 11 - O-Ring

O-Ring Part #: 112319

Price: $28.70

Item 12 - Gasket, Polyethylene Body

Gasket, Polyethylene Body Part #: 114134

Price: $12.10

Item 13 - Manifold Mounting Screw

Manifold Mounting Screw Part #: 15H317

Price: $14.90

Item 14 - Screw, SHC

Screw, SHC Part #: 15H318

Price: $12.50

Item 15 - Gasket, Polyethylene Front

Gasket, Polyethylene Front Part #: 15H316

Price: $10.00

Item 16 - Nut, Packing

Nut, Packing Part #: 195222

Price: $18.70

Item 19 - Plug, Fluid

Plug, Fluid Part #: 192687

Price: $13.80

Item 20 - Ring, Back-Up, PTFE

Ring, Back-Up, PTFE Part #: 114340

Price: $14.40

Item 21 - Packing, O-Ring

Packing, O-Ring Part #: 114244

Price: $25.20

Item 22 - Gasket, Fluid

Gasket, Fluid Part #: 192443

Price: $58.75

Item 23 - Nozzle Kit

Nozzle Kit, Orifice Size 0.020 (0.5) Part #: 289061

Price: $107.50

Nozzle Kit, Orifice Size 0.030 (0.8) Part #: 289062

Price: $102.00

Nozzle Kit, Orifice Size 0.042 (1.1) Part #: 289063

Price: $102.00

Nozzle Kit, Orifice Size 0.070 (1.8) Part #: 289065

Price: $102.00

Item 24 - Air Cap Kit

Air Cap Kit Part #: 24B544

Price: $146.50

Item 25 - Retaining Ring Kit

Retaining Ring Kit Part #: 289079

Price: $40.90

Item 25a - Air Cap Seal Kit, AirPro

Air Cap Seal Kit Part #: 289791

Price: $75.50

Item 29 - Stop, Needle

Stop, Needle Part #: 192452

Price: $19.70

Item 30 - Screw, Set

Screw, Set Part #: 114137

Price: $11.80

Item 36 - O-Ring Packing

O-Ring Packing Part #: 111457

Price: $15.60

Item 39 - Insert, Plastic

Insert. Plastic Part #: 15H702

Price: $12.50

Item 45 - Washer

Not sold separately. Included in kit 24B675.

Item 46 - Spacer

Not sold separately. Included in kit 24B675
