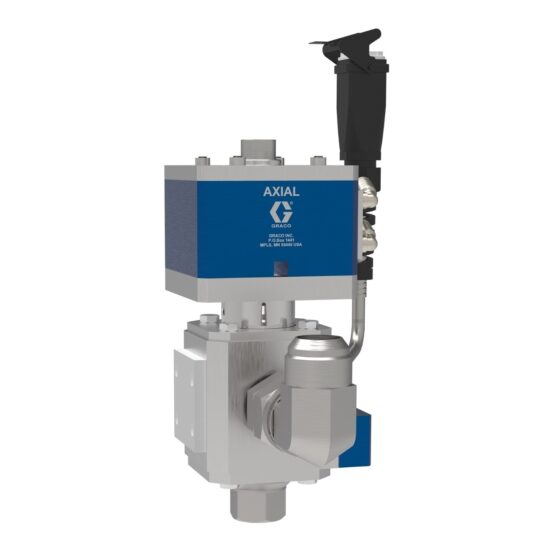

26 B453 Axial Dispense Valve
Graco 26B453

Axial Dispense Valve, 38, ADJ/RM, WEL

Part #: 26B453
$18,740.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

The Axial Rotating Dispense Valve offers high reliability for robotic glass bonding applications.


  • Unique swivel design prevents from twining of hoses, airlines, and electrical
  • Easily dispense around corners with the correct position of the bead
  • High degree of accuracy and repeatability
  • Capable of handling high production speeds
  • Wear-resistant seals and hardened components for long life
  • Easy repeatable mounting for robotic and automated applications
  • Ideal for one component urethane applications

Specifications & Documents

Technical Specifications
Component Type
Single
Max Working Pressure (psi)
4000
Air Inlet Size
1/8"
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Fluid Inlet Size
7/8-14
