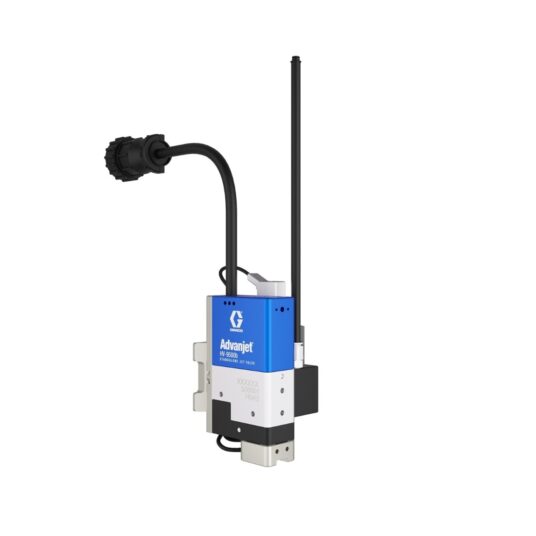

Advanjet HV 9500 B Valve 26 B951
Graco 26B951

Advanjet Valve, HV-9500B, 40W, 28P

Part #: 26B951
$12,400.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

The Advanjet HV-9500b Jet Valve provides non-contact jet dispensing for the successful application of fluids in the electronic, semiconductor, industrial and life science markets. A single, easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. No need to disassemble, clean and replace worn seals, saving time and money. The diaphragm allows fast cycle rates because of its very small mass. There is no large sliding valve stem slowing down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing wider process windows.


Diaphragm-Jet Technology Available for Standalone Operations


  • Easy to Clean Only two parts contact the fluid making it easy to exchange and replace parts.
  • Easy to Maintain Unlike complicated piezo jets, the jet valve can be maintained within your factory with low-cost maintenance kits.
  • Easy to Integrate The HV-9500b valve is a drop in replacement for existing operations. No external controller box required.
  • Versatile Choose from a wide range of diaphragms and nozzles for material compatibility.
  • Features: Up to 250 drops/sec Viscosities up to 400K cps Drops as small as 5 nl No fluid seals to clean or replace Integral heater for minimal fluid heat External controller box not required Right or left profile accommodates system layout or add-ons Syringe capacity from 5 cc to 6 oz. Available heated feed tube for enhanced flow rate stability Add the PS-2000 Priming Station for an absolutely bubble-free fluid path

Specifications & Documents

Technical Specifications
Component Type
Single
Max Working Pressure (psi)
90
