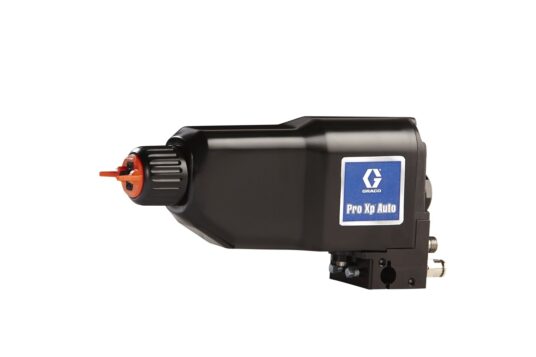

Graco HA1M10

PRO XP GUN,ES,AUTO REAR,SMART,AA

Part #: HA1M10
$15,740.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

Achieve better finishing with higher transfer efficiency and high-pressure spraying using ProXP Automatic Electrostatic Spray Gun. Connect this Smart gun to an external control module for kV control (up to 85 kV) and displaying gun performance. This Air-Assist Spray gun from Graco includes the AEM or AEF fine-finish spray tip of choice and the rear manifold for mounting on stationary and reciprocating systems. You can further remove it without disconnecting the hose and fiber optic cables from the manifold, simplifying maintenance!


    Specifications & Documents

    Technical Specifications
    Max Working Fluid Pressure (PSI)
    100 psi
    Max Working Air Inlet Pressure (PSI)
    100 psi
    Air Inlet Size
    1/4 npsm
    Fluid Inlet Size
    1/4-18 npsm
    Fluid Inlet Thread Gender
    Male
    Gun Type
    Automatic
    Manifold Type
    Rear Ports
    Atomization Type
    Electrostatic
