LA1 T16

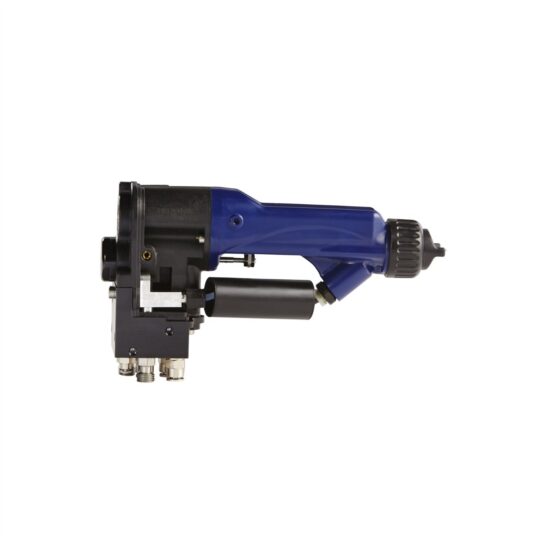

Graco LA1T16

PRO XP GUN,ES,AUTO REAR,HC

Gun Breakdown

Part #: LA1T16
$12,390.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

Switch to ProXP Automatic Electrostatic Spray Guns from Graco for low pressure, high quality spraying of high conductivity coatings. This Air Spray gun includes a high conductivity fluid tube, high wear 1.5 mm (0.055 inches) nozzle and high wear electrode. This Standard gun always runs at 85 kV power and includes an alternator speed indicator to display electrostatic performance. The included rear manifold is ideal for mounting this ProXP electrostatic standard gun on stationary and reciprocating systems. You can further remove it without disconnecting the hose and fiber optic cables from the manifold, simplifying maintenance!


    Specifications & Documents

    Technical Specifications
    Max Working Fluid Pressure (PSI)
    100 psi
    Max Working Air Inlet Pressure (PSI)
    100 psi
    Air Inlet Size
    1/4 npsm
    Fluid Inlet Size
    1/4-18 npsm
    Fluid Inlet Thread Gender
    Male
    Gun Type
    Automatic
    Manifold Type
    Rear Ports
    Atomization Type
    Electrostatic
