225014
Graco 225014

Grease Pump, Fireball, 300, 50:1 Ratio, 120 LB Grease Pump Package

Fireball 300 Series 50:1 Ratio 120 lb (55 kg). Grease Pump Package Stationary Supply Package

Part #: 225014
$1,930.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

Install the Fireball 300 in grease dispense applications. A differential air motor ensures smooth double-acting pump design provides reliable grease flow and accurate dispense.


  • Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Non-metallic poppet valves offer positive sealing performance, even with contaminated “dirty” air environments for long life without repair.
  • Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
  • Typical Fluids Handled - Grease up to NLGI #2

Specifications & Documents

Technical Specifications
Application
Ideal for Shops with Grease Transfer or Dispense
Compatible Material - Lubrication
Grease
Power Source
Pneumatic
Max Working Air Inlet Pressure (PSI)
140
Max Working Fluid Pressure (PSI)
8400
Number of Outlets
1
Air Inlet Size
3/8"
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Includes

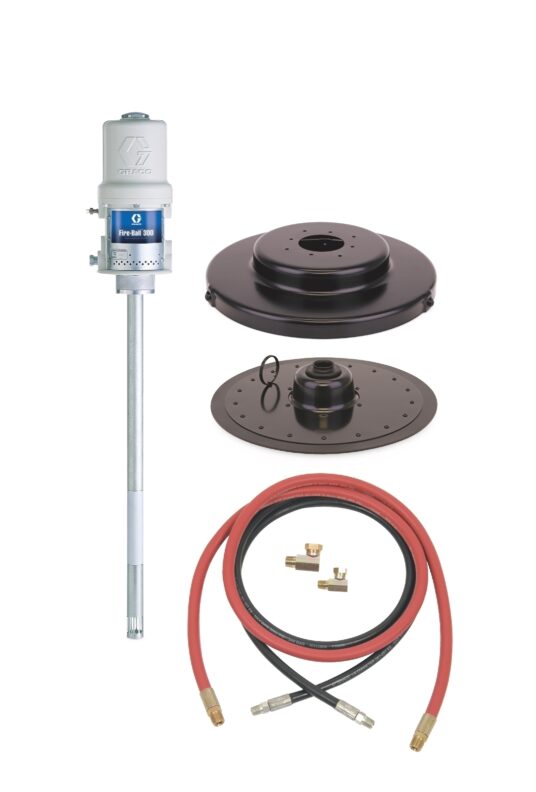

Fireball Pump, 120 lb. Drum Cover, Follower Plate, Fluid/Air Hose and Fitting Kits 6 ft.
Max Flow Rate (GPM)
0.22
Fluid Outlet Size
1/4"
Fluid Outlet Gender
Female
Fluid Outlet Type
NPT
