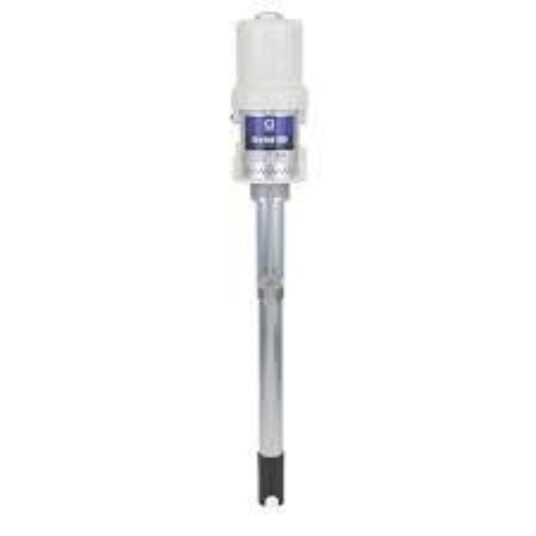

203872 Fireball Oil Pump 16 gal
Graco 203872

Fireball 300 Series 5:1 Oil Pump, 16 Gallon

Fireball 300 Series 5:1 Ratio 16 Gal (120 lb) Oil Pump

Part #: 203872
$1,820.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

Install the Fire-Ball 300 in high-pressure, medium-volume oil dispense applications such as automotive dealerships, fast lube centers and service shops. A three inch differential air motor ensures smooth pumping, and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.


  • Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Non-metallic poppet valves offer positive sealing performance, even with contaminated “dirty” air environments for long life without repair.
  • Corrosion-resistant design utilizes liquid nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
  • Typical Fluids Handled - Petroleum- and synthetic-based oils (motor, gear and ATF)

Specifications & Documents

Technical Specifications
Application
Oil Transfer and Dispense
Compatible Material - Lubrication
Oil
Power Source
Pneumatic
Max Working Air Inlet Pressure (PSI)
180
Max Working Fluid Pressure (PSI)
900
Number of Outlets
1
Air Inlet Size
3/8"
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Max Flow Rate (GPM)
12.1
Fluid Outlet Size
1/2"
Fluid Outlet Gender
Female
Fluid Outlet Type
NPT
