231414
Graco 231414

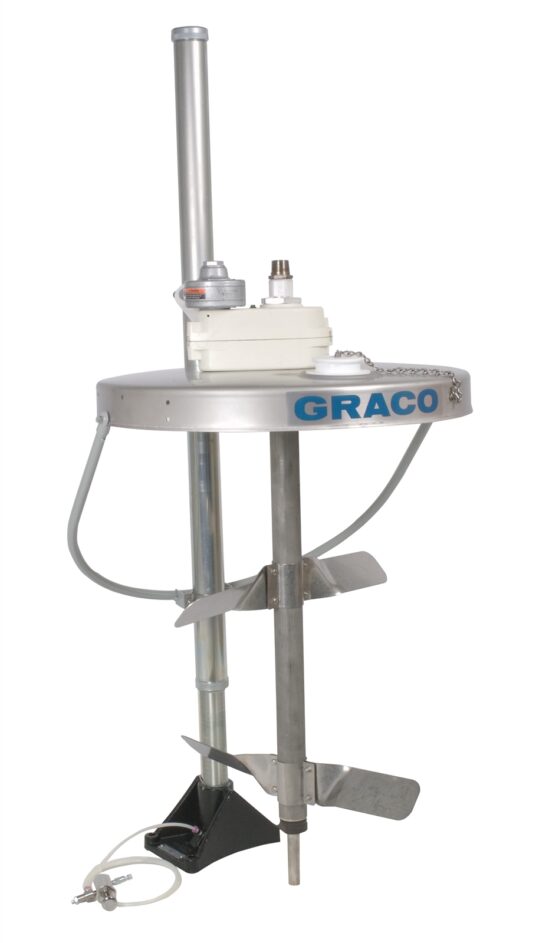

Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long

Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit.
Part #: 231414
$6,200.00
Not ready to buy?

Questions? Call us at 800-666-6072

Features

  • Heavy duty gearbox mixes high viscosity materials
  • Leak-free and oil-less gearbox prevents material contamination
  • Stainless steel agitator and cover for corrosion resistance and waterborne compatibility
  • Twin paddles thoroughly mix finishing materials
  • Siphon option allows material transfer through agitator shaft
  • Access port for easy sampling and inspection of material during operation
  • Maximum viscosity 3,000 cps

Specifications & Documents

Technical Specifications
For Use With
55 Gallon (208 Liter) Drum
Max Air Inlet Pressure (psi)
100
Max Speed (RPM)
1200
Max Viscosity (cP)
3000
Max Working Pressure (psi)
100
Motor Type
Power Rating (HP)
0.25
